Universal Fit Bed Racks

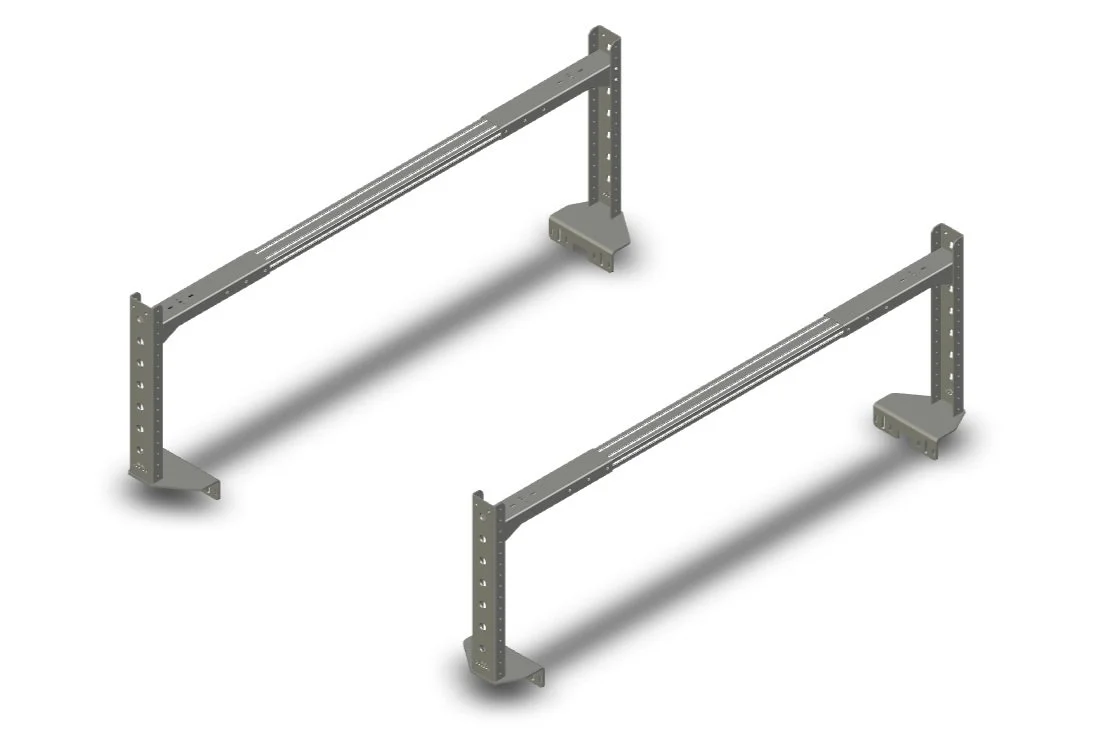

Introducing the MAX Modular TOPPER MAX Bed Rack for Softoppers.

Adjustable width, fits all trucks (EXCEPT JEEP GLADIATOR).

Features:
- 12 gauge steel, CNC laser cut legs and crossbars.
- Extruded aluminum crossbar center sections, black anodized.
- Fully bolt together, shipped disassembled, easy to put together.
- Stainless steel hardware.
- Black textured powder coated.
- Side Plates and Top Bars have adjustable positioning.
- Crossbars have holes for mounting bike fork mounts.

Equipped with mounting holes for the following accessories:

• MAX Universal Hi Lift Jack Brackets

• MAX Traction Board Brackets

• MAX Outboard Bike Mounts

• MAX Universal Awning Brackets

• RotoPax Fuel Packs

Available Heights:

• 21.5” (clearance under rack is 19.5”)

• 24.5” (clearance under rack is 22.5”)

(email or call for guidance on which height is best for your truck and topper)

Available lengths:

• 46" long

• 58" long

Two choices of bed attachment methods:

• T-Slot nuts for Tacoma and Tundra

• No-Drill Clips for all other trucks

Rack Weights

21.5” high x 46” long ~ 58 pounds
21.5” high x 58” long ~ 62 pounds
24.5” high x 46” long ~ 62 pounds
24.5” high x 58” long ~ 66 pounds

Rated Capacity (evenly distributed):

• 450 pounds dynamic

• 900 pounds static

Additional accessory panels can be purchased here.

Additional top bars can be purchased here.

If selecting No Drill Clips as the attachment method, ensure that your truck has an area for the clips to attach to. If it does not have an area for the clips to attach, you may have to bolt the rack directly to the bed (this scenario is most common with some Chevy and GMC trucks).

*Please allow 3 to 5 business days processing time prior to shipment. If the item is needed ASAP, email us and we will help you out.

This item ships in three boxes. You will receive three tracking numbers.

Got a BIG truck with a BIG bed??

Introducing the MAX Modular TOPPER MAX SL 70” Long Bed Rack for Softoppers.

Adjustable width, fits all trucks (EXCEPT JEEP GLADIATOR).

SL = Six Legs, for ultimate strength

Features:
- 12 gauge steel, CNC laser cut legs and crossbars.
- Extruded aluminum crossbar center sections, black anodized.
- Fully bolt together, shipped disassembled, easy to put together.
- Stainless steel hardware.
- Black textured powder coated.
- Side Plates and Top Bars have adjustable positioning.
- Crossbars have holes for mounting bike fork mounts.

Equipped with mounting holes for the following accessories:

• MAX Universal Hi Lift Jack Brackets

• MAX Traction Board Brackets

• MAX Outboard Bike Mounts

• MAX Universal Awning Brackets

• RotoPax Fuel Packs

Available Heights:

• 21.5” (clearance under rack is 19.5”)

• 24.5” (clearance under rack is 22.5”)

• 27.75” (clearance under rack is 25.75”) (This size comes standard with our Extra Wide Accessory Panels)

(email or call for guidance on which height is best for your truck and topper)

Two choices of bed attachment methods:

• T-Slot nuts for Tacoma and Tundra

• No-Drill Clips for all other trucks

Rack Weights

21.5” high ~ 120 pounds
24.5” high ~ 125 pounds
27.75” high ~ 132 pounds

Rated Capacity (evenly distributed):

• 450 pounds dynamic

• 900 pounds static

If selecting No Drill Clips as the attachment method, ensure that your truck has an area for the clips to attach to. If it does not have an area for the clips to attach, you may have to bolt the rack directly to the bed (this scenario is most common with some Chevy and GMC trucks).

*Please allow 3 to 5 business days processing time prior to shipment. If the item is needed ASAP, email us and we will help you out.

This item ships in three boxes. You will receive three tracking numbers.

Introducing the MAX Modular UTILITY RACK for TONNEAU COVERS (URTC), bolt together Truck Bed Rack.

Adjustable width, fits all trucks.

Features:

- Adjustable height, up to 24” high. Set the rack to your desired height.
- Can be mounted over a Softopper.
- Allows most tonneau covers to fully open.
- CNC laser cut 0.190” thick steel uprights.
- CNC laser cut 12 GA steel crossbars.
- Extruded aluminum crossbar center sections, black anodized (1.5” high x 3” wide).
- Fully bolt together, shipped disassembled, easy to put together.
- Stainless steel hardware.
- Black textured powder coated.
- Optional Accessory Panels and Top Bars have adjustable positioning.
- Crossbars have holes for mounting bike fork mounts.

Uprights are equipped with mounting holes for our MAX Universal Awning Brackets.

Optional Accessory Panels are equipped with mounting holes for the following accessories:

• MAX Universal Hi Lift Jack Brackets

• MAX Traction Board Brackets

• RotoPax Fuel Packs

Click HERE for Optional Accessory Panels

Click HERE for Optional Top Bars

Two choices of bed attachment methods:

• T-Slot nuts for Tacoma and Tundra

• No-Drill Clips for all other trucks

Designed to fit with most tonneau covers. See our Tonneau Fitment Guide HERE.

Rack Weight without Optional Top Bars or Accessory Panels

52 pounds

Rated Capacity (evenly distributed):

• 450 pounds dynamic

• 900 pounds static

*When used with the factory 2016+ Toyota Tacoma tonneau cover, be aware that the pins for the cover may interfere with mounting of the uprights.

Prior to purchase, please examine our pictures and your tonneau cover to guarantee that our brackets will be compatible. If you have concerns about compatibility, please contact us and we will advise.

If selecting No Drill Clips as the attachment method, ensure that your truck has an area for the clips to attach to. If it does not have an area for the clips to attach, you may have to bolt the rack directly to the bed (this scenario is most common with some Chevy and GMC trucks).

*Please allow 3 to 5 business days processing time prior to shipment. If the item is needed ASAP, email us and we will help you out.

This item ships in two boxes. You will receive two tracking numbers.
