MAX Modular STEEL MAX 18" High Bed Rack, Fits All Toyota, Ford, Chevy, RAM, and Nissan Trucks

MAX Modular STEEL MAX 18" High Bed Rack, Fits All Toyota, Ford, Chevy, RAM, and Nissan Trucks

from $1,149.00

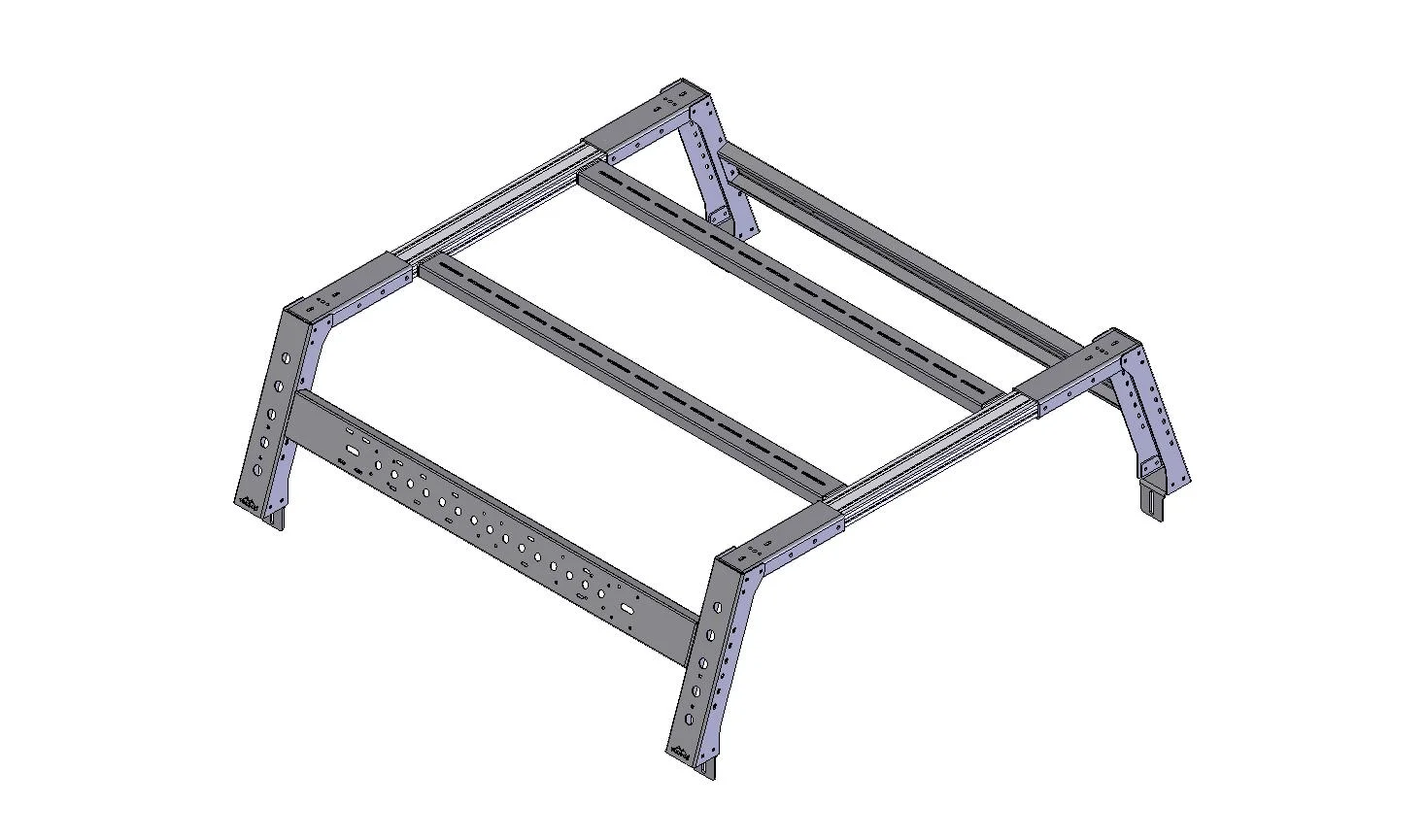

Introducing the MAX Modular STEEL MAX bolt together Truck Bed Rack.

This is our strongest bed rack.

Adjustable width, fits all trucks.

Features:
- 12 gauge steel legs, and 7 gauge steel crossbars, CNC laser cut.
- Extruded aluminum crossbar center sections, black anodized.
- Fully bolt together, shipped disassembled, easy to put together.
- Stainless steel hardware.
- Black textured powder coated.
- Side Plates and Top Bars have adjustable positioning.
- Crossbars have holes for mounting bike fork mounts.

Equipped with mounting holes for the following accessories:

  • MAX Universal Hi Lift Jack Brackets

  • MAX Traction Board Brackets

  • MAX Outboard Bike Mounts

  • MAX Universal Awning Brackets

  • RotoPax Fuel Packs

Available lengths:

  • 46" long

  • 58" long

Two choices of bed attachment methods:

  • T-Slot nuts for Tacoma and Tundra

  • No-Drill Clips for all other trucks

Will work with tonneau covers with our optional brackets.

If you have a Tacoma with a Bakflip cover, click here.

Additional accessory panels can be purchased here.

Additional top bars can be purchased here.

Rack Weights

46” long - 83 pounds
58” long - 90 pounds

Rated Capacity (evenly distributed):

  • 450 pounds dynamic (350 pounds with optional tonneau brackets)

  • 900 pounds static (700 pounds with optional tonneau brackets)

*IF ORDERING TONNEAU COVER BRACKETS:

Prior to purchase, please examine our pictures and your tonneau cover to guarantee that our brackets will be compatible. If you have concerns about compatibility, please contact us and we will advise.

If selecting No Drill Clips as the attachment method, ensure that your truck has an area for the clips to attach to. If it does not have an area for the clips to attach, you may have to bolt the rack directly to the bed (this scenario is most common with some Chevy and GMC trucks). We also have Offset Attachment Brackets that may alleviate this issue.

*Please allow 3 to 5 business days processing time prior to shipment. If the item is needed ASAP, email us and we will help you out.

This item ships in three boxes. You will receive three tracking numbers.

AVAILABILITY:
IN STOCK!!

Length:
Bed Attachment Method:
Upgrade to Tonneau Cover Brackets ($150 option):
Quantity:
Add To Cart
