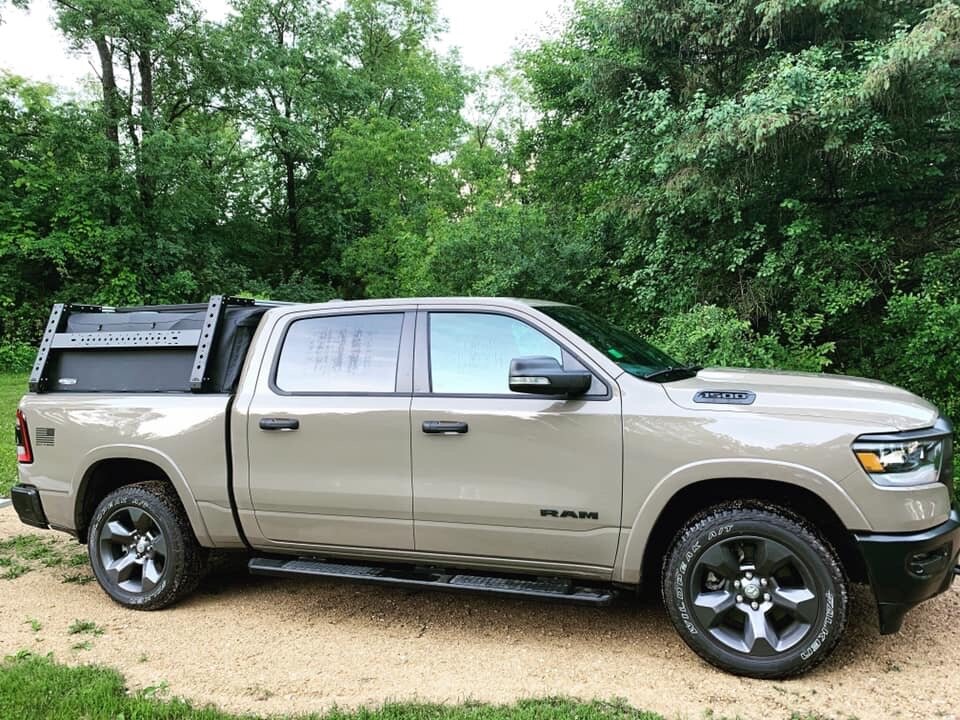

Introducing the MAX Modular TOPPER MAX Aluminum Bed Rack for Softoppers.

Adjustable width, fits all trucks (EXCEPT JEEP GLADIATOR).

Features:
- 0.190 inch thick aluminum, CNC laser cut legs and crossbars.
- Extruded aluminum crossbar center sections, black anodized.
- Fully bolt together, shipped disassembled, easy to put together.
- Stainless steel hardware.
- Black textured powder coated.
- Side Plates and Top Bars have adjustable positioning.
- Crossbars have holes for mounting bike fork mounts.

Equipped with mounting holes for the following accessories:

• MAX Universal Hi Lift Jack Brackets

• MAX Traction Board Brackets

• MAX Outboard Bike Mounts

• MAX Universal Awning Brackets

• RotoPax Fuel Packs

Available Heights:

• 21.5” (clearance under rack is 19.5”)

• 24.5” (clearance under rack is 22.5”)

• 27.75” (clearance under rack is 25.75”) (This size comes standard with our Extra Wide Accessory Panels)

(email or call for guidance on which height is best for your truck and topper)

Available lengths:

• 46" long

• 58" long

Two choices of bed attachment methods:

• T-Slot nuts for Tacoma and Tundra

• No-Drill Clips for all other trucks

Rack Weights

21.5” high x 46” long - 48 pounds
21.5” high x 58” long - 52 pounds
24.5” high x 46” long - 52 pounds
24.5” high x 58” long - 56 pounds
27.75” high x 46” long - 56 pounds
27.75” high x 58” long - 60 pounds

Rated Capacity (evenly distributed):

• 450 pounds dynamic

• 900 pounds static

Additional accessory panels can be purchased here.

Additional top bars can be purchased here.

If selecting No Drill Clips as the attachment method, ensure that your truck has an area for the clips to attach to. If it does not have an area for the clips to attach, you may have to bolt the rack directly to the bed (this scenario is most common with some Chevy and GMC trucks).

*Please allow 3 to 5 business days processing time prior to shipment. If the item is needed ASAP, email us and we will help you out.

This item ships in three boxes. You will receive three tracking numbers.
